LCD Digital Speedometer

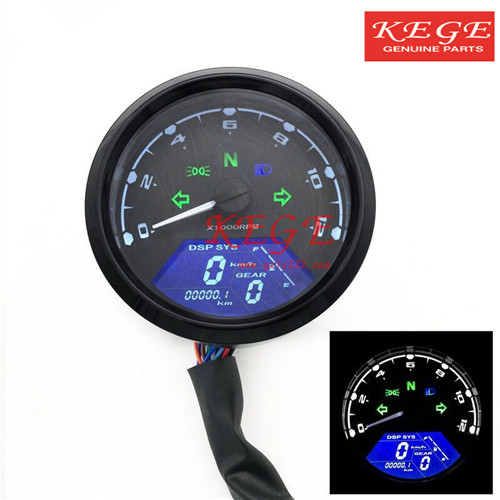

12000RPM LCD Digital Speedometer Odometer Tachometer 1-4 Cylinders Motorcycle
Package includes:
1X Speedometer
1X Sensor
2X Magnetic steel
Working voltage : 8-18V
Rated voltage: DC 12V
Working temperature: -20 - +70℃
Storage temperature: -30 - +80℃
Digital display speed range: 0-199km/h (error +10%)
Needle display rpm range: 0-12000rpm (error +5%)
Digital display odo distance range: 0-99999.9km
Gear indicator: 1-6
Backlight: Blue
Installation diameter: 9cm
Height: 5.3cm
Cable Length: 12cm
Weight: 344g
Features:
Large anti -UV & Anti-glare LCD screen
All-in-one design with digital signal processing system
Using chip technology for most of the components
Multiple indicator functions as the L/R Turn Signal, High Beam, Position Lights, N Lights
High withstand voltage up to 100V
Waterproof & Anti-vibration
Fitment:
Fits for most motorcycle that is with 4 stroke, 2 / 4 Cylinders (default as 1 cylinder of the setting)
* Please check the details of our listing before you buy to make sure it fits for your application
* Notes:
No friction or contact between the hall probe and the magnet
Engine rotate speed comes from the ignition signal. The sensor wire is normally contacted with the positive side of the magnetor or directly wired on the rectifier
Oil Mass can be wired on the original sensor
Do NOT wired on the headlight if it had been modified as the HID Xenon light. Instead, connect it on the headlight control wiring
